Falcon 1690EO-36IN-US28 Concealed Vertical Exit Device
1690 Series Exit Devices
Ideal for demanding, moderate-traffic applications.
- Cast metal cover plates and end caps provide durability in demanding applications
- Various options, functions, trims and finishes allow for tailoring to any facility needs
- Designed for medium to high use and abuse in institutional applications like schools, hospitals and government facilities

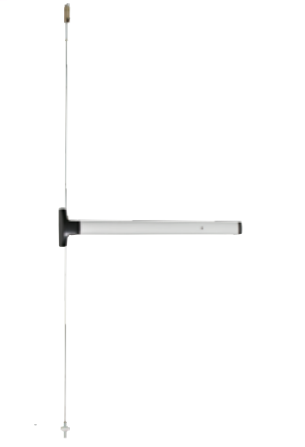

Falcon 1690EO Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Field Reversible
The design of the 1690 is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device.
Device functions: EO - Exit Only
Specifications
- Hand: Field reversible, non-handed.
- Strike: PB48 top.
- Latches: Standard top - SU latch; Standard bottom - hex bottom bolt.
- Dogging feature: Hex key dogging standard.
- Sizes: 30", 36", 42", and 48".
- Doors: 1-3/4" thick metal door.
- Projections: 3-3/8" in neutral position, 2-3/8" in dogged position. Pushbar height is 2-1/2".
- Stile: 1-3/4" minimum.
- Fasteners: All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
- Endcaps: Black powder-coated metal end caps.
- Vertical rods: 7' standard, extension rods available up to 10'.
- ANSI: Certified ANSI A156.3 grade 1 standards.
- Hurricane: 1690 devices are used for hurricane rated door openings.
