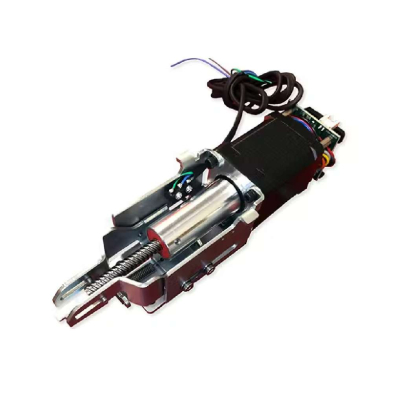

Command Access MLRK1VD MLR Kit Von Duprin 33/35 98/99 Exit
The MLRK1-VD is a practical and cost-effective way to convert a mechanical Von Duprin series device to a motorized latch retraction device, while maintaining the listing. Our easy-to-install motor-driven kit installs in moments & includes a built-in request to exit (US ONLY). It is equipped with push-to-set (PTS) technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the VD features an updated MM5 module, energy conscious while still being capable of getting tough jobs.
VOLTAGE RANGE – 24 TO 28 VDC
SYSTEM PROTECTION – UNIT SHUTDOWN WHEN
VOLTAGE EXCEEDS 28VDC
STANDARD - AVERAGE CURRENT PEAK: 900MA,
AVERAGE CURRENT HOLD: 215MA
PTS ADJUSTMENT – APPROX. 1/4”
WIRE RUN:
300’ WITH 18GA WIRE
PRODUCT DETAILS:
Box: 10.5” x 3.75”: x 2.5”
WEIGHT: 2 Lbs
15 MASTER PACK:
Weight: 30 Lbs 12.75” x 11.75” x 11”
CUTDOWN DETAILS:
36”/ 48” - 6.5” Filler Plate Needed
Accessories
Request to Exit (VDREXKIT-ED) - Built-in to all Units or order an additional for double REX applications
Latchbolt Monitor (VLDBMKIT-ED) - Field or Factory Install
Low Current Version of REX or LBM available, add LC Part #
