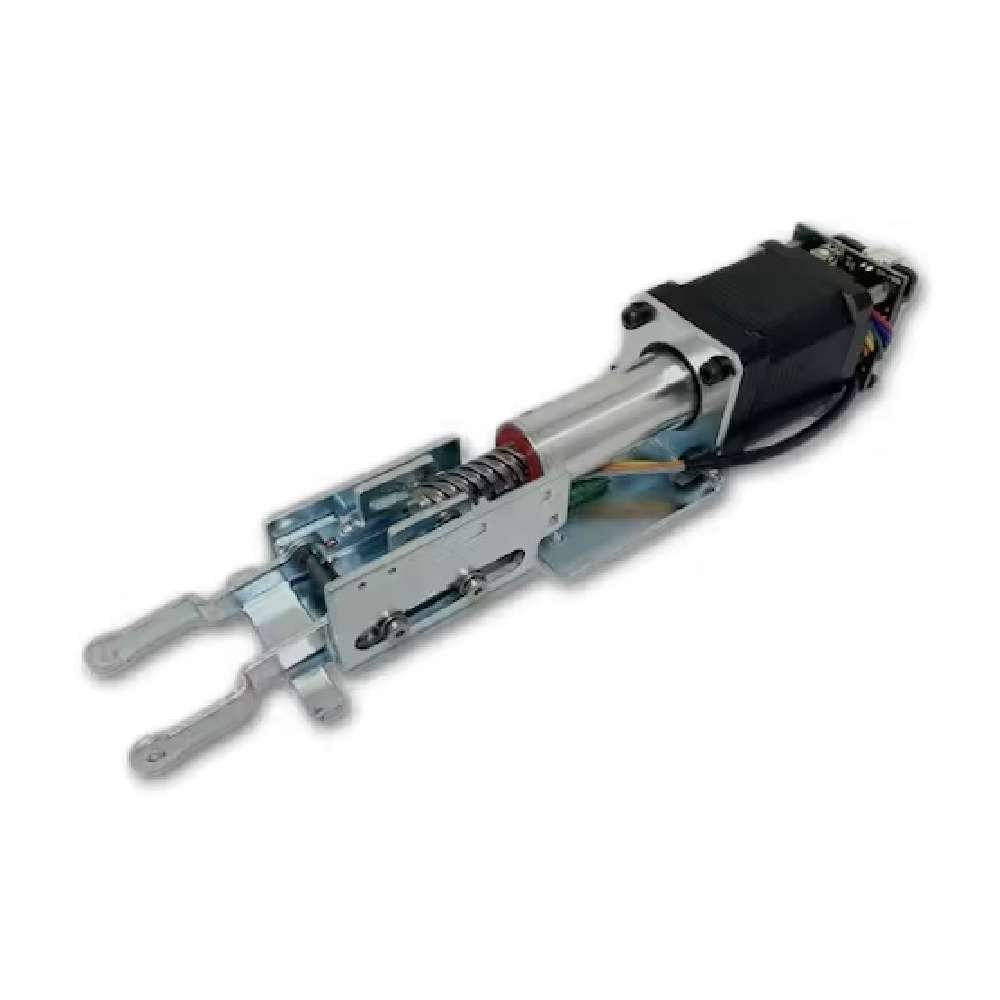

Command Access MLRK1MRK MLR Kit Marks M9900 and 1000 Exit
The new MLRK1-MRK is a practical and cost-effective way to convert a mechanical Marks M9900 series & Design Hardware 1000 series device to an electrified motor driven latch retraction device. The retrofit kit will maintain all UL listings on the device and for peace of mind is backed by CAT’s 3-year no hassle warranty. The new unit easily attaches to the back of the dogging post & is secured with in a matter of minutes. The only hole you’ll need to drill is for the wire raceway. PTS allows for a smooth post-installation adjustment of the latch/ latches. An optional built-in REX switch is available on all units! Last but not least, the new MLRK1-MRK’s features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!
Voltage:
- Voltage range – 24VDC +/- 10%
- System protection – unit shutdown when voltage exceeds 28VDC
- Standard - Average Current Peak: 900 mA, Average Current Hold: 215mA
- High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
- PTS adjustment – approx. 1/4”
- 300’ with 18ga wire
• Weight: 2 Lbs
Device Cutdown Details:
• 36” - 2-1/4”
• 48” - N/A
Accessories
• MRKREXKIT-M-ED - Field Install onto MLRK1 Kit
