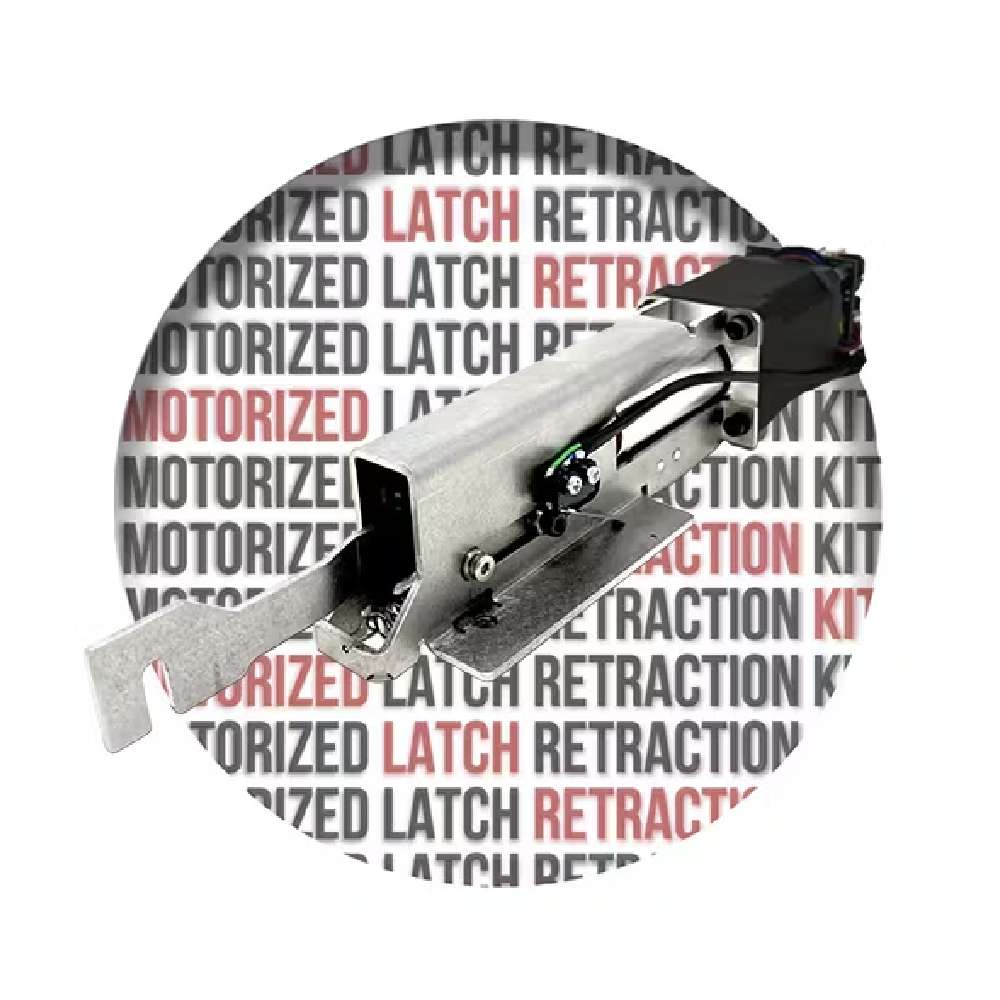

Command Access MLRK1FAL17 MLR Kt 1690/1790 AHT4/5 3600/3700
The MLRK1-FAL17 is a cost-effective and straightforward way to upgrade your Falcon 1690/1790, First Choice 3600/3700, & AHT 4/5 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty
It uses our new 1 TOUCH PTS “Push to Set” technology, making post-installation adjustments a breeze.
Voltage:
Voltage range – 24VDC +/- 10%
System protection – unit shutdown when voltage exceeds 28VDC
Standard - Average Current Peak: 900mA, Average Current Hold: 200mA
PTS adjustment – approx. 1/4”
Wire Run:
300’ with 18ga wire
Built-in REX:
SPDT rated at .5A @ 24V
Green (C)
Blue - (NO)
Gray (NC)
Product Details:
Weight: 2 Lbs
Device Cutdown Details:
36” - 1-1/4”
48” - 1-1/4”
