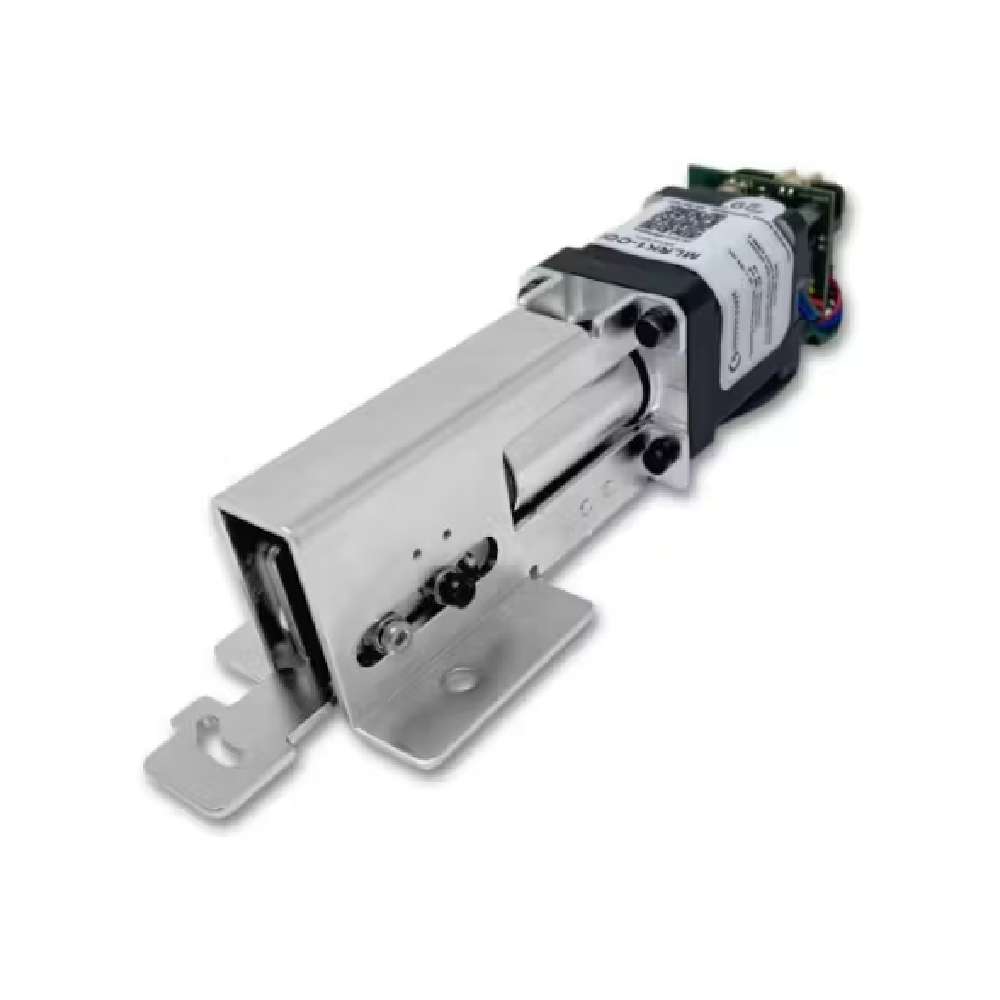

Command Access MLRK1-COR MLR Kit Corbin 4/5000 Yale 7000 Ext

Command Access MLRK1-COR MLR Kit Corbin 4/5000 Yale 7000 Ext

The MLRK1-COR is a cost-effective and straightforward way to upgrade your Corbin Russwin 4/5000 & Yale 7000 series device to motor-driven latch retraction in the field. UL Listed

Voltage:

• Voltage range – 24 to 28 VDC
• System protection – unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900mA, Average Current Hold: 215mA
• High Torque - Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment – approx. 1/4”

Wire Run:

• 300’ with 18ga wire

Product Details:

• Weight: 2 Lbs

Device Cutdown Details:

• 36” - 4” from end cap
• 48” - 10” from end cap

Accessories

• Optional Request-to-exit can be added

Command Access MLRK1-COR Motorized Latch Retraction Kit for Corbin Russwin 4/5000 & Yale 7000 Series Exit Device

• “PTS” Push to set technology
• Powerfully Built & Easy to Install!
• Fast, quiet, smooth
• True Electronic Dogging - Full push pad retraction
• UL Listed
• Retrofits Corbin Russwin 4/5000 & Yale 7000 series exit devices
