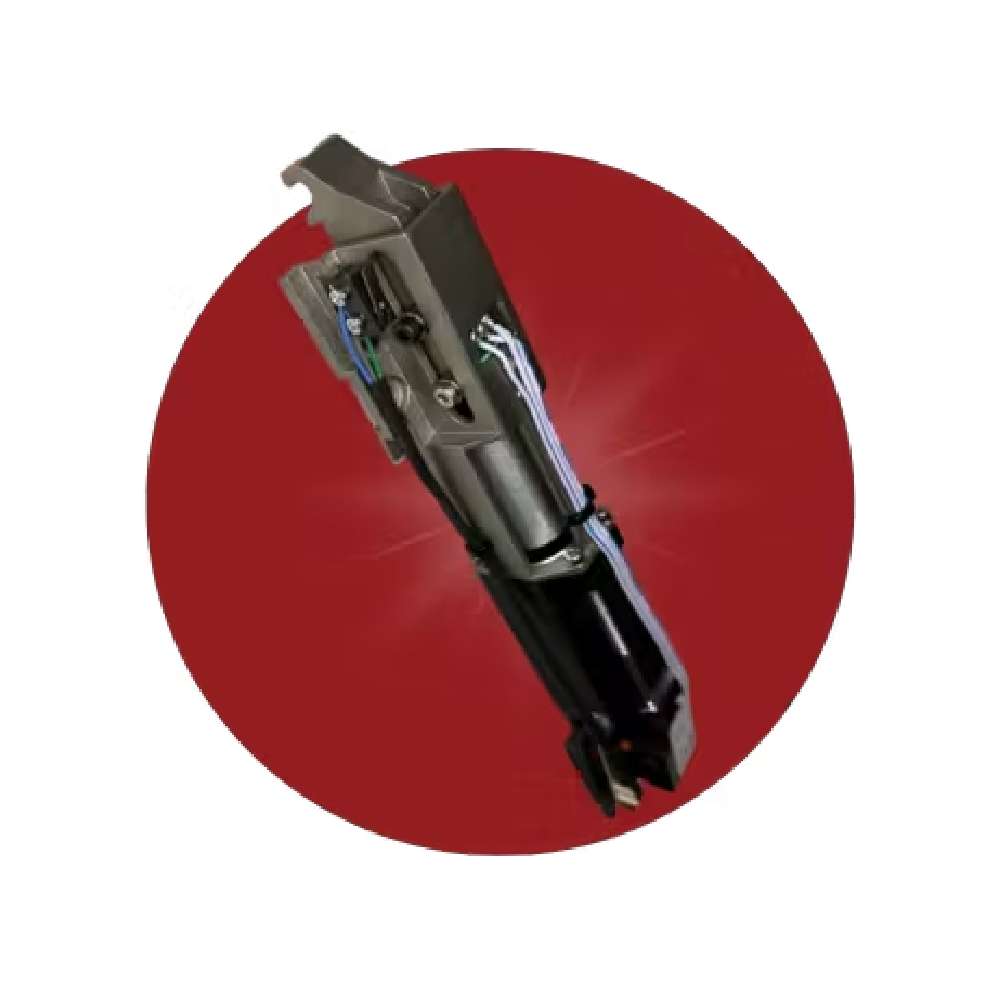

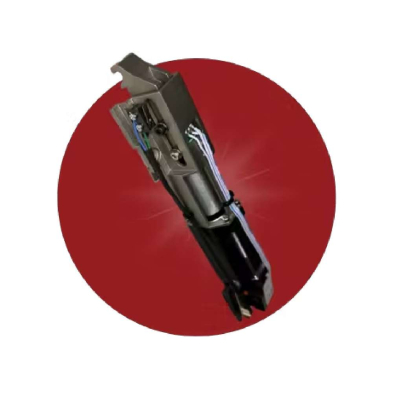

Command Access MLRK1AR MLR Kit Adms Rte 82/84/86/88/P88 Exit
The MLRK1-AR is a cost-effective and straightforward way to upgrade your Adams Rite 82/84/86/88/P88 & GAAB G352 series device to motor-driven latch retraction in the field. UL Listed + 3-Year Warranty
Voltage:
Voltage range – 24VDC +/- 10%
System protection - Unit shutdown when voltage exceeds 28VDC
Standard - Average Current Peak: 1.4A, Average Current Hold: 200mA
PTS Adjustment - approx. 1/4”
Cutdown
36” - .75”
42” - 6.75”
48” - 5”
Wire Run:
300’ with 18ga wire
Product Details:
MLRK1• Box: 14.25” x 6”: x 2.5”•
Weight: 3 Lbs
Master Pack Qty: 6 each.
Accessories
Request-to-Exit - Field Installable REX kit or built-in to kit.
