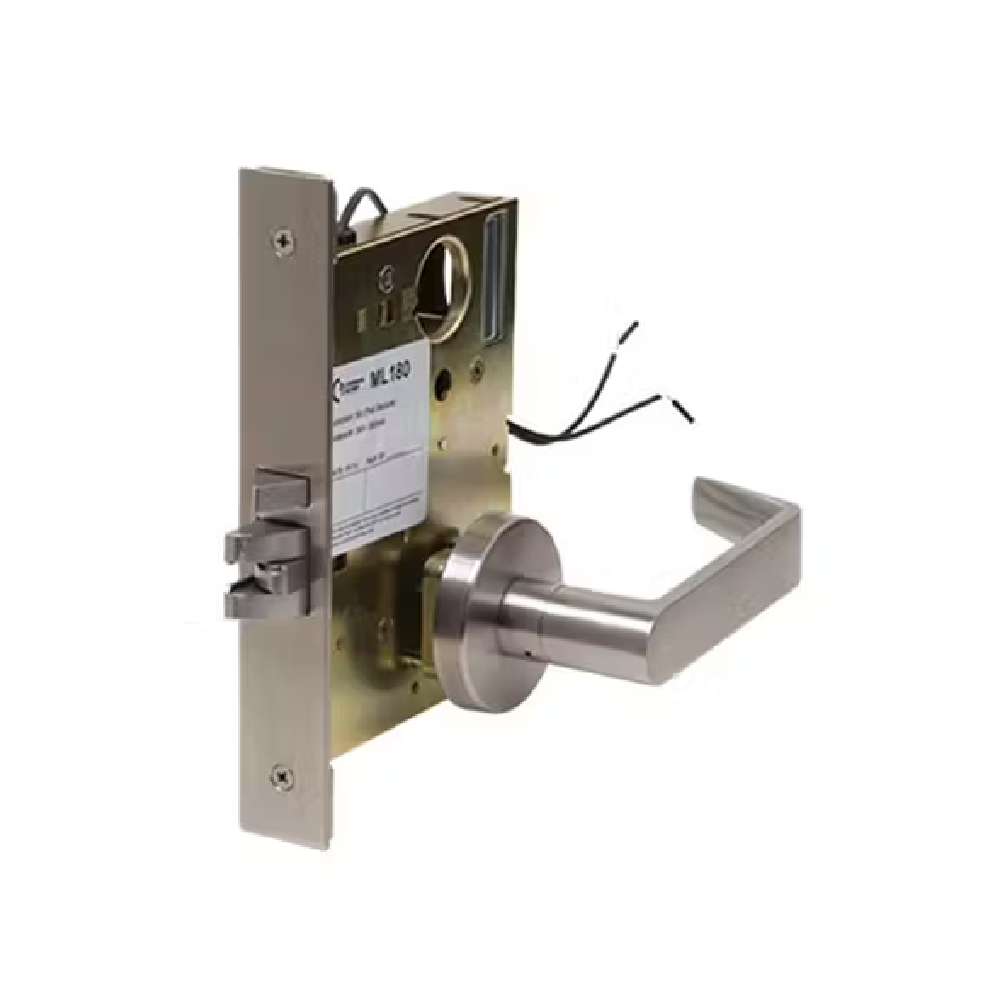

Command Access ML180 Elec Solend Schlg L9000 Mort Unlck RH
The Command Access ML1 retrofit complete lock (L9000) series available in a solenoid (ML180) & motor driven (ML190) modification offers the quality and features found in premium-quality, domestically made ANSI grade 1 mortise locks, yet at a significantly lower cost. The electrification and part tolerance maintenance is done here in the USA to ensure CAT’s high quality standards are met. The ML1’s chassis and trim are compatible with the Schlage 'L' series locks so retrofitting to Schlage prep is never a problem.
Voltage:
• Operating Voltage - 12 or 24VAC/DC (+or- 10%)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption - 8 watts
• Available Fail Safe (EL) or Fail Secure (EU)
Accessories:
- Current Reduction Unit (CRU2) - 10-30V input manages power to efficiently control a 12 or 24V solenoid. Improve solenoid life in “continuously on” applications.
- Request to Exit (REX) - Available as a field installable kit or factory installed
- Request to Exit By Pass (REXBPS) - Request to exit (REX) switch will be bypassed when the lock is in the unlocked state, preventing false REX signals.
- Latchbolt Monitor (LBM) - Monitor the position of the latchbolt
- Door Position (DPS) - Monitor the position of the door
- Solenoid Monitor (SLM) - Monitor the position of the solenoid
- Security Monitor (SCM) - Monitor Solenoid & Door position.
