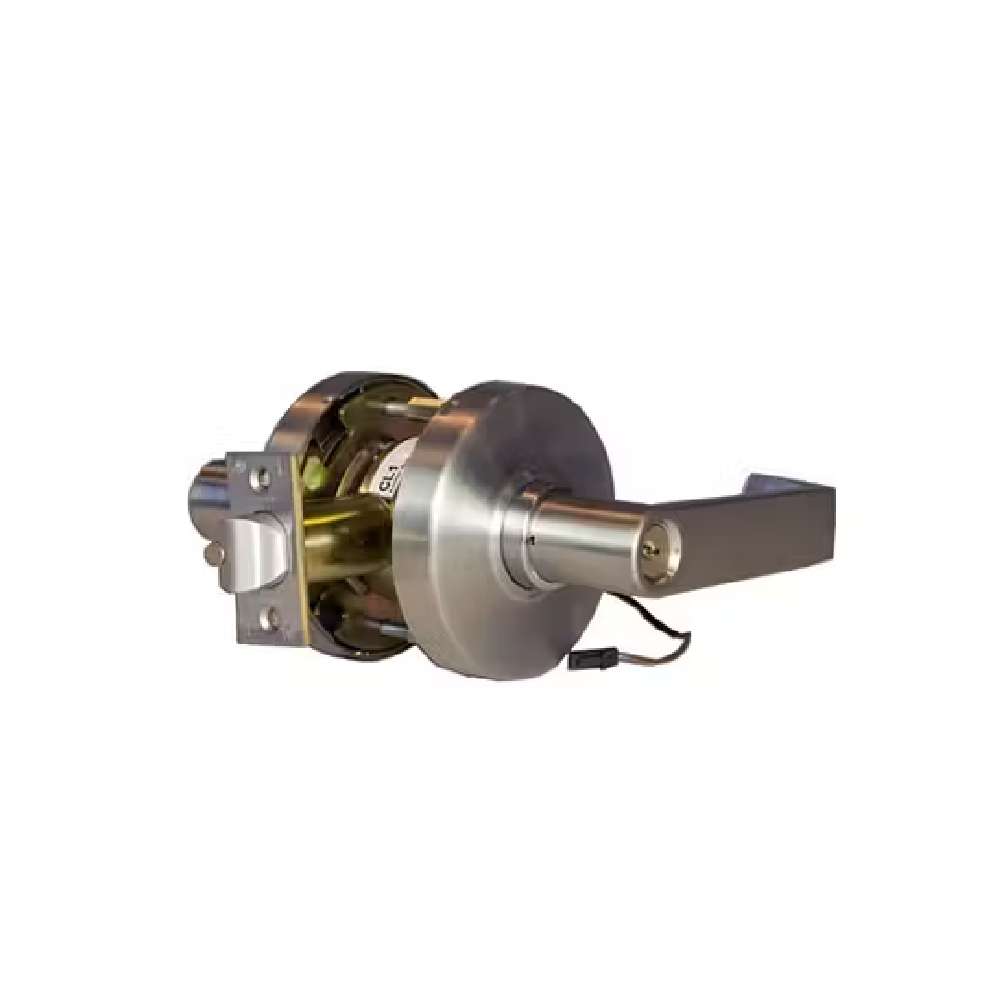

Command Access CL180LEEU Elec Cyl Low Energy L6 SC Kewy Chrm

Command Access CL180LEEU Elec Cyl Low Energy L6 SC Kewy Chrm

Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress

Voltage:

• Operating Voltage - 11-30 VDC
• Surge Current: 400 mA @12V, 200 mA @ 24V
• Holding Current: 30 mA
• Specify Fail Safe (EL) or Fail Secure (EU)

Accessories:

• 2-3/8” backset available

Trims Available:

• L6
• L7
• L17

Command Access CL180LE-EU Electrified Cylindrical Low Energy Lock L6 Handle Schlage C Kewyway 11V-30V Satin Chrome

• Low maximum current draw 400 mA (12V): use more locks on a single power supply. Additonal savings for the owner
• Low holding current 30 mA : reliable operation and meets sustainable consideraton
• Fail Safe (EL) & Fail Secure (EU) available; not field selectable
• Available SFIC or LFIC (Schlage): Cylinder not included
