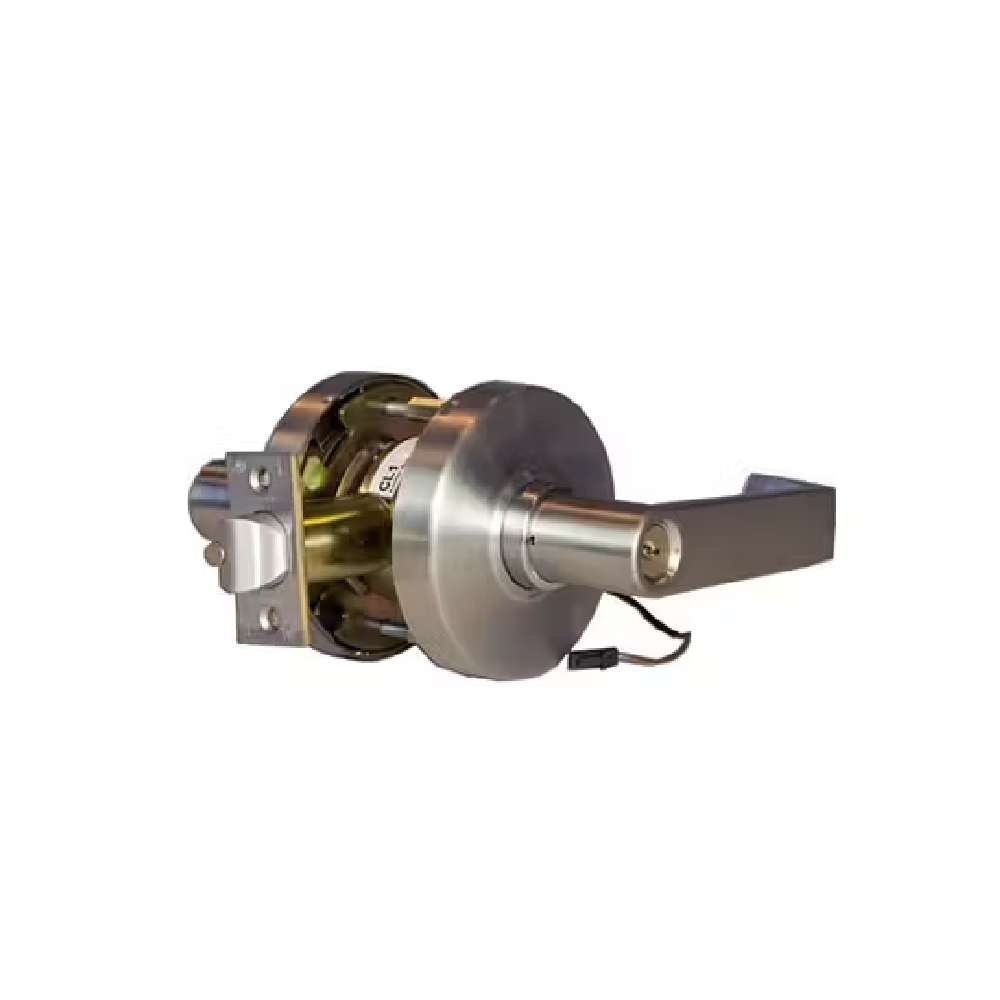

Command Access CL180 Electrc Cylindrical Lck Unlocked Chrome

Command Access CL180 Electrc Cylindrical Lck Unlocked Chrome

The Command Access CL1 is a high quality grade 1 cylindrical lock with the look and feel our customers have come to expect from leading brands, but at a significantly lower price. The CL1 is an ideal solution for that project where a 'brand name' electrified product is not specified or required yet a high quality and economical solution is desired.

• UL LISTED
• 161 PREP
• CLUTCHING GRADE 1
• 12 OR 24 VDC
• LOW CURRENT DRAW

Voltage:

• Operating Voltage - 12 or 24VAC/DC (+or10%) not field selectable
• Amperage - 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
• Power consumption - 3 watts

Product Details:

• Door thickness range is 1 - 9/16” to 2 -1/8”.
• Standard 2 ¾ backset. optional 2 3/8 backset

Command Access CL180 Electrified Cylindrical Lock Electronic Unlocked C Keyway L6 Satin Chrome

• Continuous duty solenoids allow for “continuously on” applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low current draw Clutching lever design
• Available SFIC
• Available with Schlage C type keyway
