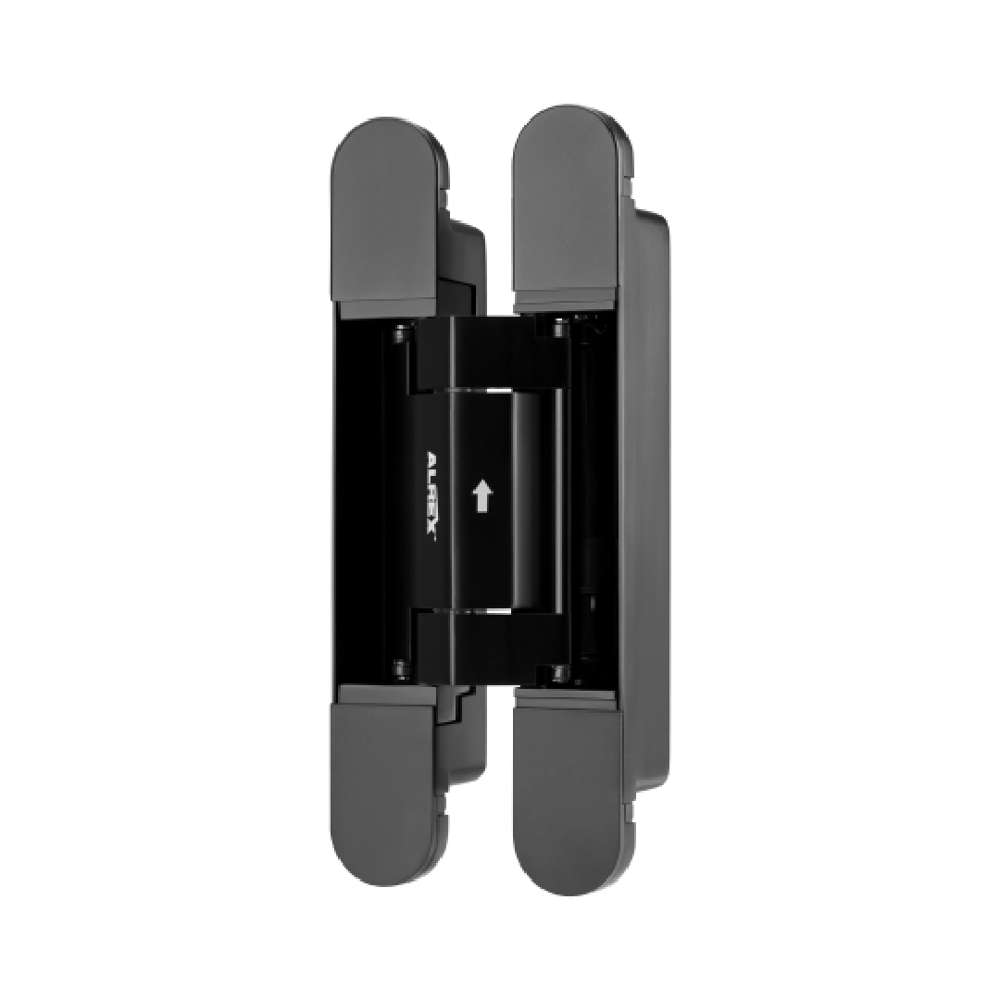

Alrex AXC-2D-BL 2D Conceal Blk Non-Handed Hydraulic Hinge

Alrex AXC-2D-BL 2D Concealed, Black, Non-Handed Hydraulic Hinge

Designed for high-performance commercial applications, our 2D Concealed Hydraulic Hinge combines durability, precision, and smooth operation. Engineered with a self-closing hydraulic system and adjustable closing speed, this hinge provides seamless functionality while maintaining a sleek, hidden aesthetic. The 2D Hydraulic Concealed hinge is non-handed.

Applications

• Industrial & Institutional Settings
• Luxury & High-End Architecture
• Hotels & Resorts

Max Door Weight

• 88 lbs / Hinge

Material (Castings)

• Aluminum Alloy

Minimum Door Thickness (inches)

• 1 ¾"

Material (Housing)

• Zinc Alloy

Door Gap Adjustment (Up + Down)

• ± 2.5mm (0.098")

Door Gap Adjustment (Left + Right)

• ± 2mm (0.079")

Alrex AXC-2D-BL 2D Concealed, Black, Non-Handed Hydraulic Hinge

• Maximum Opening Angle: Supports up to 180° of motion for enhanced accessibility.
• Heavy-Duty Strength: Precision castings support up to 220 lbs.
• Extended Durability: Exceeds 300,000 cycle load tests, ensuring long-term reliability.
• Non-Handed: Allows for universal applications.
• Patent #10633905: Innovative engineering backed by patented technology.
• 2D Adjustability: Fine-tune door alignment up/down, and left/right, for a perfect fit.
• Hydraulic Control: Self-closing at 85° with adjustable buffering for smooth operation.
• 5-Year Warranty: Confidence in quality and performance.
