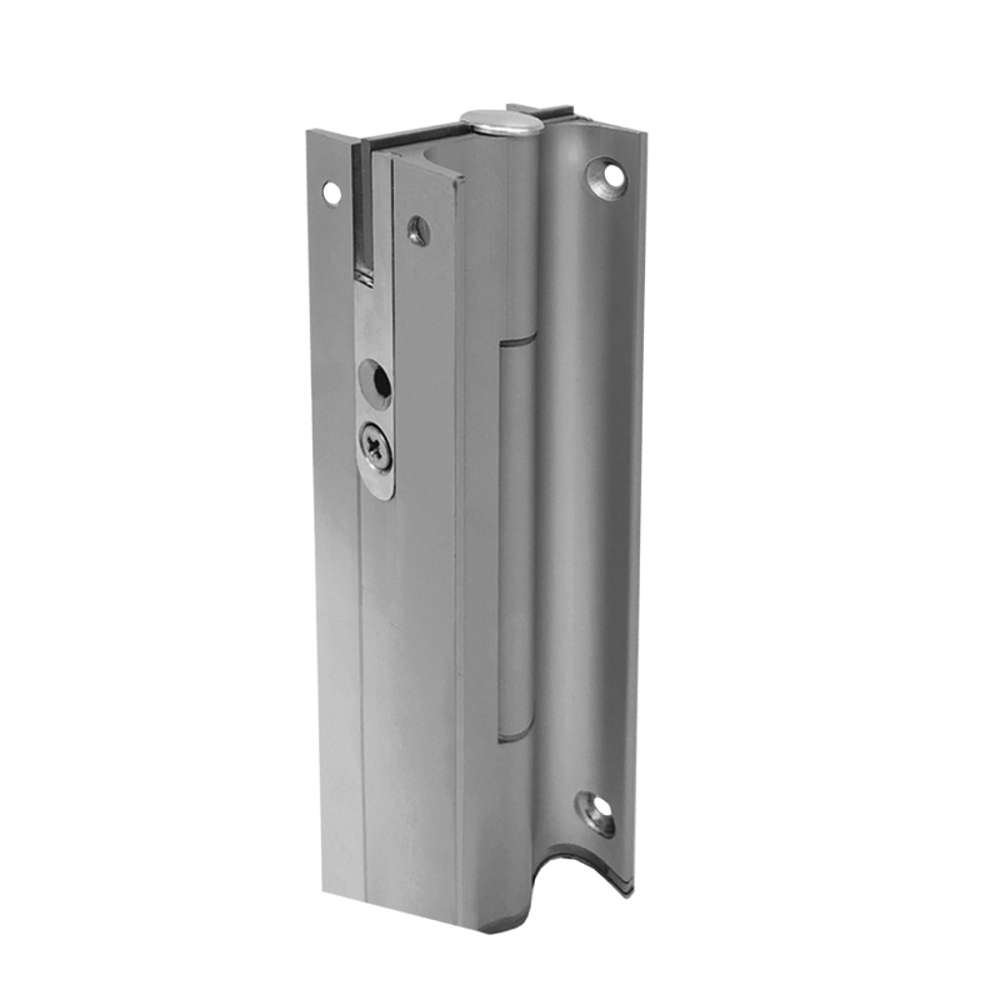

ABH A507-HD-B-083 Alum 83in Dbl Acting Continuous Hinge Blk
Double swing aluminum hinge with spring loaded top gap close mechanism approved by NY Office of Mental Health for behavioral health facilities.
Technical Specifications
Material: Aluminum
Load Capacity: 600 lbs. door weight maximum
Door Width: 48" maximum
Hinge Type: Double swing for behavioral health applications
Standard Lengths: 79", 83", 85", 95", 120" (custom available)
Fasteners: Pin Torx security screws (included)
Operating Range: Spring loaded top gap close mechanism
Available in clear, dark bronze, black, and custom anodized finishes. Custom powder coat options available.
