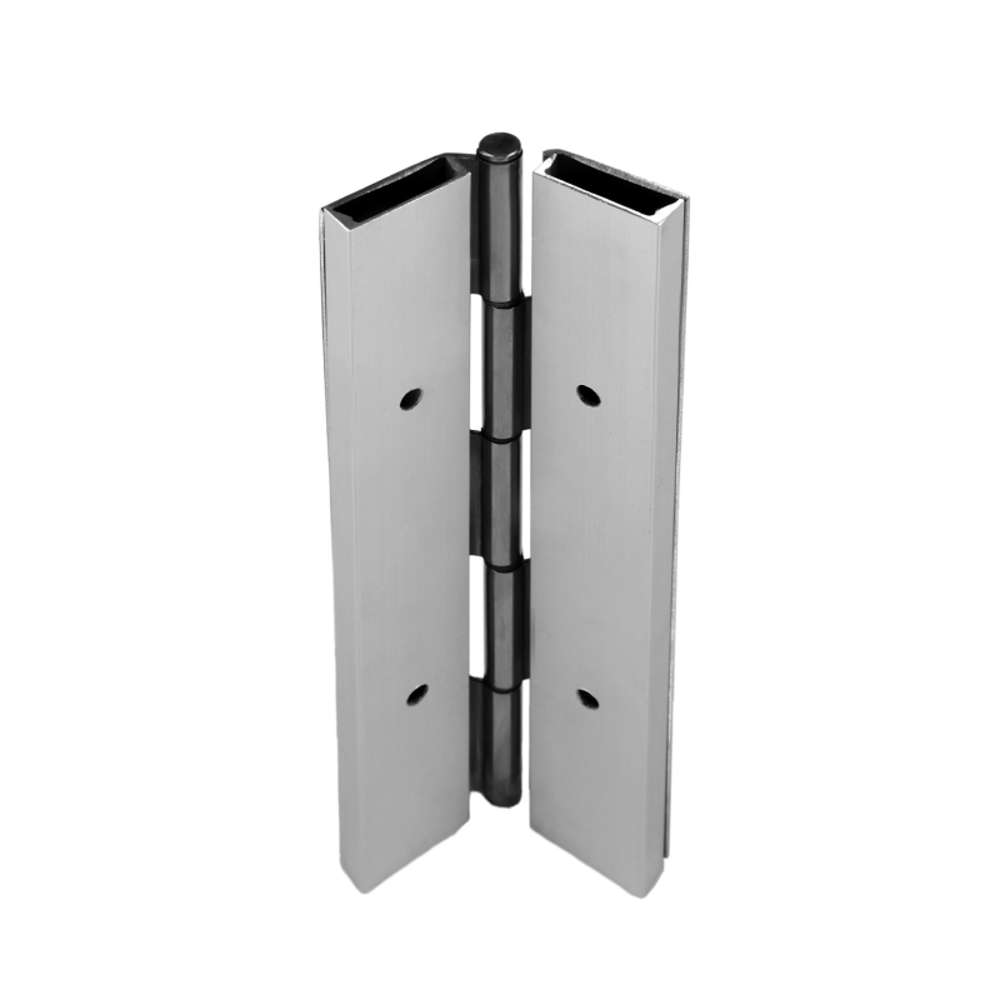

ABH A502 78-¾in to 83-⅛in Surface Steel Hinge Aluminum Cover
Full surface heavy duty stainless steel pin and barrel continuous hinge with flush mount design providing superior corrosion resistance and 600 lb load capacity for commercial applications.
Technical Specifications
Material: Stainless steel pin and barrel
Load Capacity: 600 lbs. door weight maximum
Door Width: 48" maximum
Door Inset: No inset, flush mount
Standard Lengths: 78-3/4", 83-1/8", 85", 95", 118-3/4"
Fasteners: 10-24 X 3/4” round head self-drilling zinc plated screws for door
Fire Rating: UL Listed for Fire Door Assemblies - 20 min (wood), 90 min (composite/hollow metal), 3 hr (hollow metal)
Weight: 11 lbs. average per unit
Frame and door leaf fastener covers are clear anodized aluminum.
