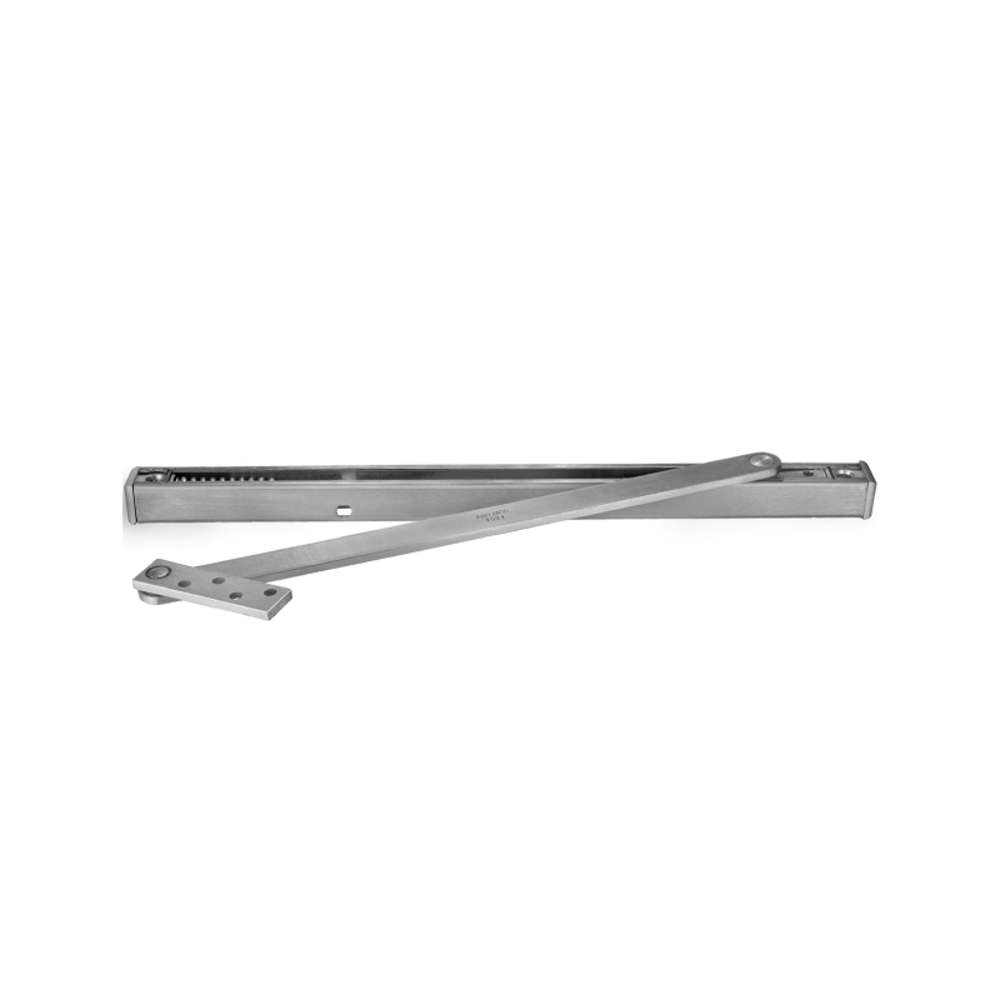

ABH 1017-US32D 23x26-15/16in Mount Hold Single Double Steel

ABH 1017-US32D 23x26-15/16in Mount Hold Single Double Steel

Concealed mount heavy duty overhead holder and stop providing stop, hold-open and friction functions for frequent traffic and heavy weight doors in both interior and exterior applications.

Technical Specifications
Material: Steel
Fire Rating: UL Listed for 20-minute wood and 90-minute hollow metal door assemblies (stop function only).
Weight: 6 lbs. average per unit
Door Thickness: 1-3/4" minimum
Door Configuration: Single or double acting
Operating Range: 85° to 110° opening (5° increments)
Functions Available: Stop, hold-open, friction
Shock Absorption: 3° to 5° cushion before dead-stop

Non-handed design. For interior or exterior use on frequent traffic applications.

ABH 1017-US32D 1000 Series 23in - 26-15/16in Overhead Concealed Mount Hold Open Heavy Duty, Single or Double Acting Doors Stainless Steel

Key Features & Notables

• Concealed Mount Design
• Heavy Duty Construction
• Single or Double Acting
• Shock Absorbing Spring
• UL Listed for Fire Door Assemblies (Stop Function Only)

Click Here for ABH Manufacturing 1000 Concealed Overhead Door Stop Adjustment Template

Click Here for ABH Manufacturing Essentials Product Catalog
