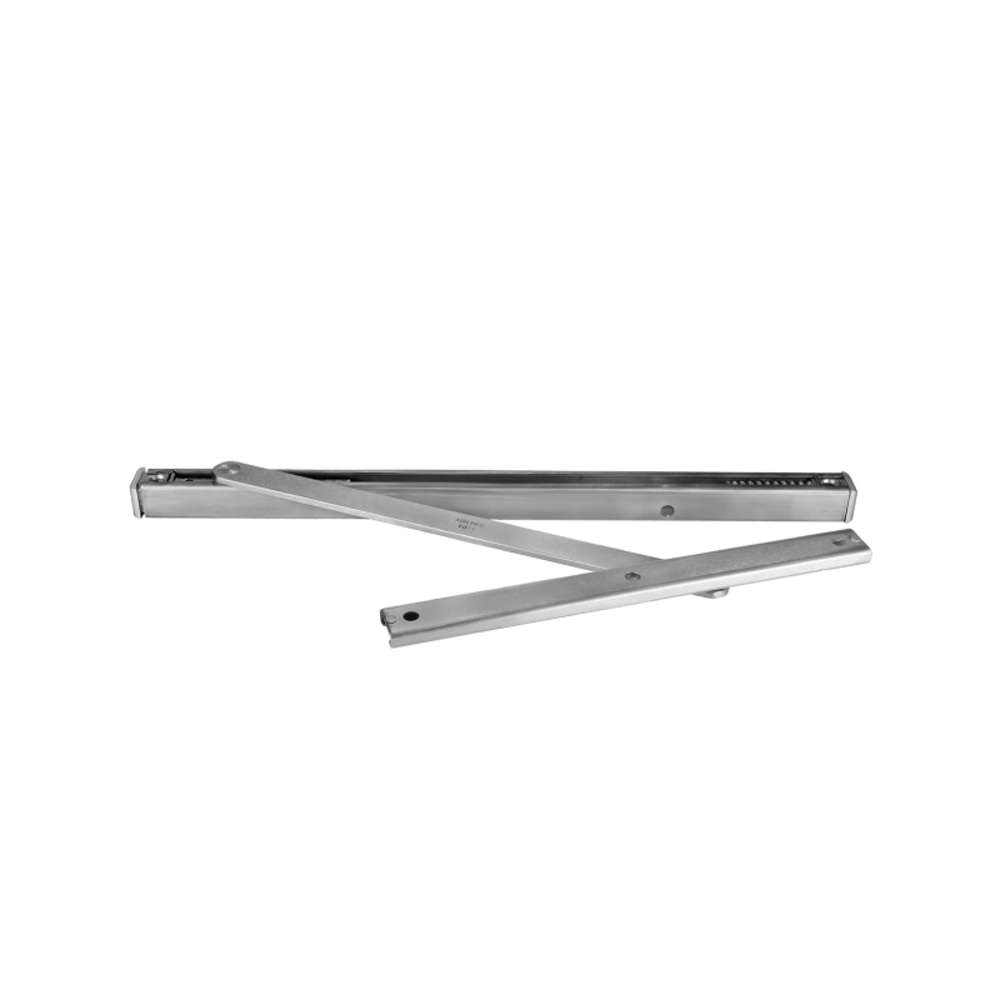

ABH 1011A-US32D 27x29-15/16 Mount Adjustable Single Steel

ABH 1011A-US32D 27x29-15/16 Mount Adjustable Single Steel

Concealed mount heavy duty overhead holder and stop with field-adjustable opening range after installation for frequent traffic and heavy weight door applications.

Technical Specifications
Material: Steel
Fire Rating: UL Listed for 20-minute wood and 90-minute hollow metal door assemblies (stop function only).
Weight: 6 lbs. average per unit
Door Thickness: 1-3/4" minimum
Door Configuration: Single acting only
Operating Range: 85° to 110° opening (5° increments, field adjustable)
Functions Available: Stop, hold-open, friction
Shock Absorption: 3° to 5° cushion before dead-stop

Non-handed design. Opening degree adjustable after installation.

ABH 1011A-US32D 1000A Series 27in - 29-15/16" Overhead Concealed Mount Hold Open Heavy Duty, Adjustable, Single Acting Doors Stainless Steel

Key Features & Notables

• Field Adjustable Post-Install
• Heavy Duty Construction
• Concealed Mount Design
• Shock Absorbing Spring
• UL Listed for Fire Door Assemblies (Stop Function Only)
