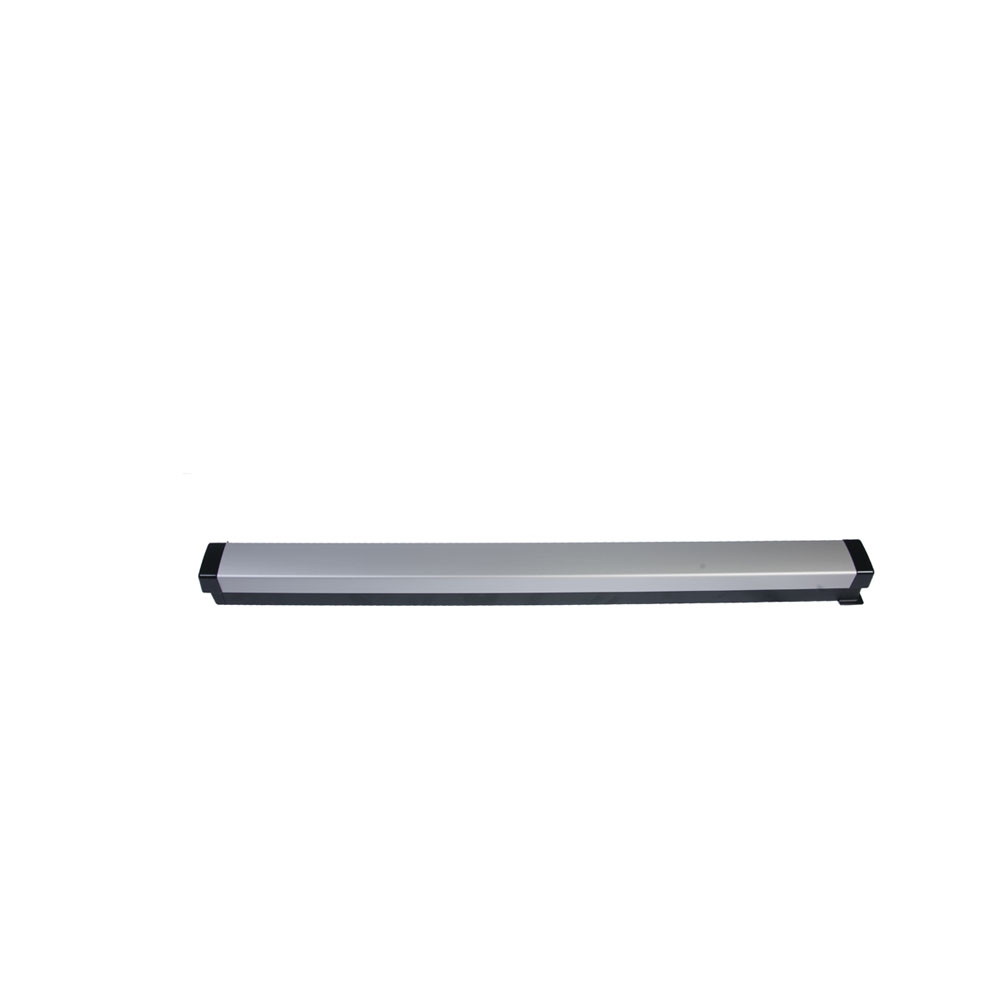

Adams Rite 8099-M1-3136 Active Dummy Pushbar
Dummy Push Bar with no latch mechanism but with either single or dual monitor/signal switches. May be used in conjunction with a maglock, where the push bar turns off the magnet and allows exit from the building. Dual switch version allows redundancy where required by code or the operation ofa signal device. Designed for applications with single or pairs of doors.
Materials: Push bar made of extruded aluminum, available variety of architectural finishes.
Stile Width:
- For hollow metal and wood applications: minimum 3-3/4" [95.3 mm]
- For aluminum applications: minimum 2" [50.8 mm] stile.
- For hollow metal and wood applications: standard self-tapping screws and machine screws.
- For aluminum applications: standard machine screws.
Push Bar Length: Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings.
Standard Package: Individually boxed.
Shipping Weight: 6 lbs [2.72 kg].
Options:
- 8099M0: Active dummy push bar, no monitoring switches
- 8099M1: Active dummy push bar, single monitoring switch
- 8099M2: Active dummy push bar, dual monitoring switches
- Available for aluminum, hollow metal and wood applications. Specify door type and width when ordering
Optional Sex Bolt Kits 26-0584 (two required per device) available separately.
- 8099-00: Inactive dummy push bar only, no switches (option has been discontinued)
