So not only do you get our toughest Grade 1 cylindrical lock, that is ideal for use in schools, hospitals, offices, retail spaces, colleges, universities and other applications.
We don't compromise on security.
The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
- Cycle tests - Warped door tests
- Resistance tests - Bolt strength tests
- Door impact tests
We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our ND-Series locks meets ANSI Grade 1 standards for safety.
Built to perform without fail.

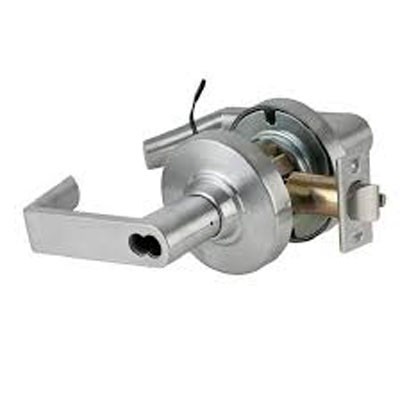

The Schlage ND Series is the toughest cylindrical lock we make. That means you get premium durability and performance in a lock that's also easy to service and maintain. And because we test our locks beyond the standards required by ANSI, you know that you're getting a product you can count on to withstand the use and abuse that come with heavy duty commercial applications.
Features and Benefits
- Tested to at least 3 times the 1,000,000-cycle ANSI Grade 1 requirement.
- Exceeds ANSI A156.2, Series 4000 Grade 1 locked lever torque requirements.
- The only cylindrical lock available with our exclusive Vandlgard® technology (Sold Seperately).
Door Handing
The Schlage Commercial ND-Series Levers are reversible.
ADA-Compliant Products
In compliance with the American National Standard Institute (ANSI A117.1) and the Americans with Disabilites Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilites.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Function: The Schlage ND-Series Levers are available in Passage (ND10S), Privacy (ND40S), Entry/Office (ND50D), Keyed Entry (ND53D), Classroom (ND70D), Storeroom (ND80D), and Single Dummy (ND170) function.
Finish: The Schlage ND-Series Levers come in Brass (605), Oil Rubbed Bronze (613), and Satin Chrome (626) finish.
Cylinder Options: All Entry/Office (ND50LD), Entrance (ND53LD), Classroom (ND70LD), and Storeroom (ND80LD) functions are sold Less Cylinder; see "Companion Items" above for all Cylinder & Keying options.
All Schlage ND-Series Locks come standard with Square Corner 2-3/4" Backset Latch (Spring Latch 13-048; Deadlatch 13-047) and Square Corner Strike (10-025).
Door Range: 1-5/8" - 2-1/8" (41mm - 54mm).
Latch: 1-1/8" x 2-1/4", Square Corner Faceplate, 1" housing diameter, 1/2" throw.
Strike: 1-1/4" x 4-7/8", ANSI, Square Corner, No Box (10-025).
Backset: Standard 2-3/4" Backset (Spring Latch 13-048; Deadlatch 13-047).
Certification: ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 1, UL Listed for 3-hour fire door.
Special Order Information: For pricing on any function or finish of the Schlage Commerical ND-Series Levers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
