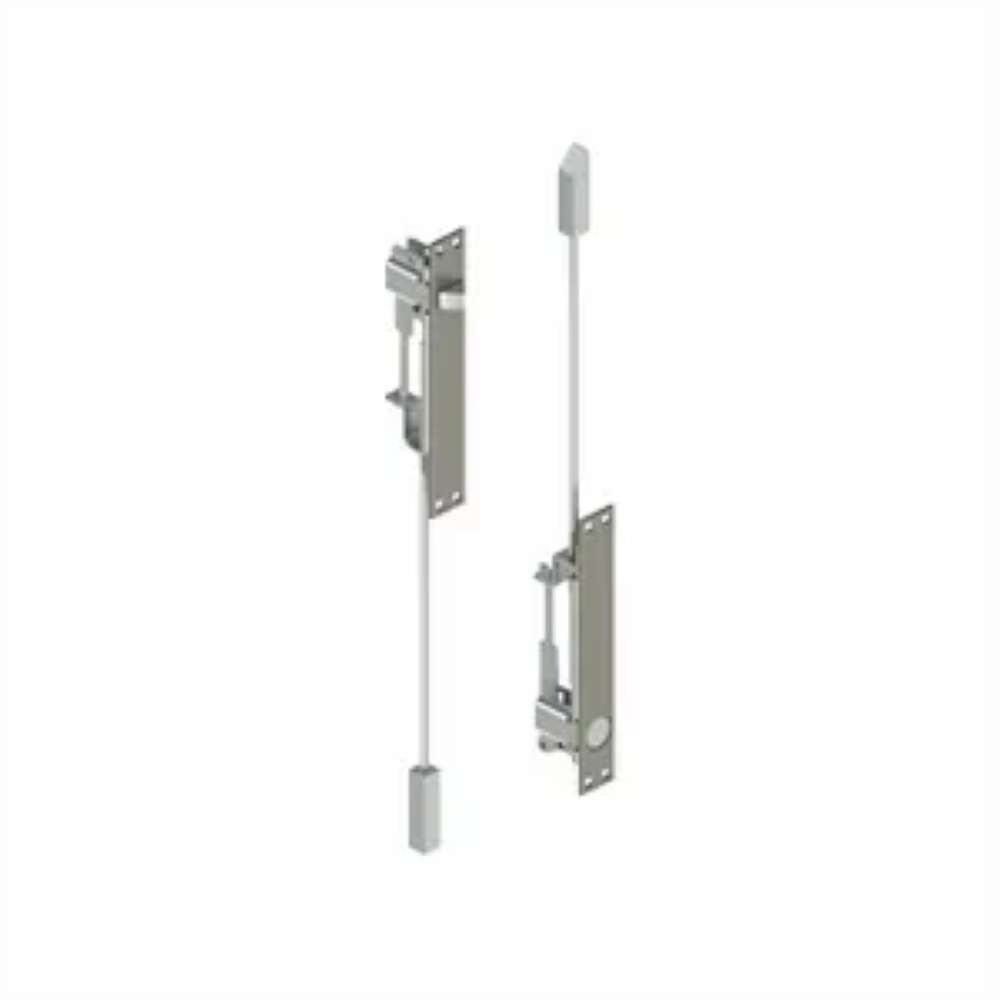

Hager 293D-32D Constant Latching Flush Bolt Steel 3/4in

Hager 293D-32D Constant Latching Flush Bolt Steel 3/4in

Bolt Backset 3/4" (19.5 mm)

Bolt Throw 3/4" (19 mm)

Certifications

• 3-hour fire rating on metal doors up to 4' wide x 8' tall (A Label rating)
• ANSI A156.3 Type #25 and ANSI A156.16 Type #27

Faceplate

1" x 6-3/4" (25.6 mm x 171.8 mm)

Finishes

US10B, US32D

Flattened Round Bolt Head

Square bolt head 1/2" (13 mm)

Includes

1 each 292S and 1 each 293S

Material

Stainless steel with steel components

T-Strike

1-1/8" x 2-2/4" (28.6 mm x 70 mm)

• Thermal lock automatically locks inactive door under high fire/heat conditions
• 280X Dust Proof Strike are recommended for use with these sets
• Consists of one 292S and one 293S for two point latching
• Inactive door remains latched until active door is opened, releasing the automatic bottom bolt
• Top bolt can be manually released by pressing plunger
• Inactive door will re-latch automatically when closed
• Non-handed
• Bolt head rods are adjustable
• 293S top flush bolt may be paired with 2-649-0166, 1-649-3926, or 1-269-3927 fire bolts
• Product Description
• Self-Latching Top and Automatic Bottom Flush Bolts for Inactive Metal Doors
